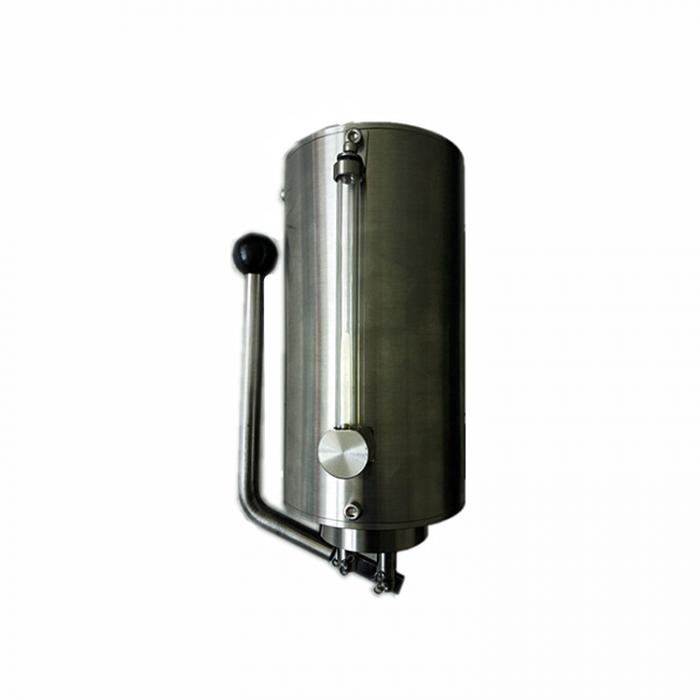

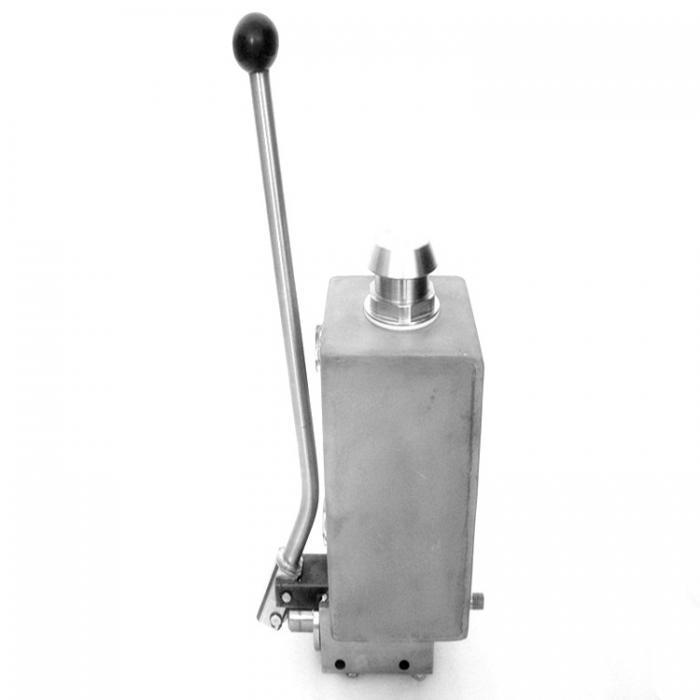

Handle Refill Pump
| Name: | Handle Refill Pump |
| Type: | TQRP |
| Volume: | 2L |
| Transfer Capacity: | 16L |
| Operating Temperature: | 60°C |
| Operating Pressure: | Normal |
| Transfer Pressure: | 40Bar |
| H.S. Code: | 8413200000 |
Hand refill pump used for reservoir to refill buffer and isolating liquid.

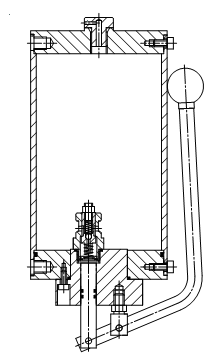

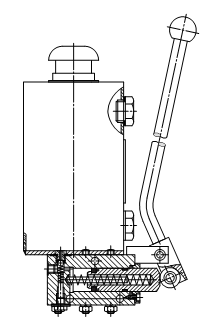

Structure
*Refill buffer liquid using with piston theory. Small volume and easy to install.
Application
*Used for refill lost buffer liquid during operation
*Used with pressure tank for API plan 52 and 53
Material
*Shell: Cr-Ni Steel/Cr-Ni-Mo Steel *Seal Ring: Viton®
